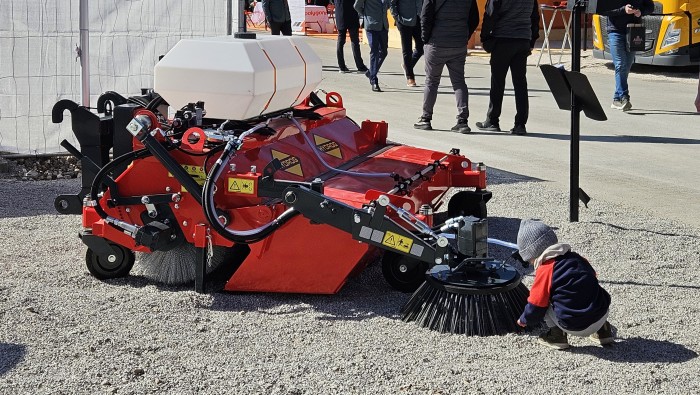

Double function sweepers OKP-DUO
Flagship type of HYDROG sweepers
OKP-DUO street sweepers have the most durable construction among the sweepers available on the market. They are intended for cleaning even and uneven surfaces, and for reliable continuous operation with high efficiency, even under severe construction conditions. They are used by demanding individual customers and in reputable rentals of construction machines. They can be attached to all popular models of loaders, backhoe loaders and tractors available on the market.
Two working modes - depending on the needs
- collection of impurities into the reservoir
- sweeping of impurities to the side - reservoir raised
Reinforced construction enables operation in the harshest conditions
OKP-DUO sweepers can be used on construction sites and are mainly destined for repairs of road surfaces during summer season but they will also prove themselves during winter maintenance of roads, eg: at snow removal. Hydraulic motors are adapted for hydraulic systems of backhoe loaders. Their frames are blasted, professionally protected against corrosion and painted in special painting booths.
The most durable wheels on the market
We equip our sweepers with the strongest support wheels. Two wheels in front and two at the rear, which increases the reliability of the machine on the surface with longitudinal unevenness, eg ruts. These wheels can carry loads several times bigger than the weight of the sweeper.
Possible carriers
Sweepers can be attached to each kind of carrier equipped with hydraulic system:
- Backhoe loaders, loaders, skid steer loaders,
- tractors e.g.. Volvo, JCB, CAT, Case, Komatsu, Liebherr, Stalowa Wola, Waryński, Fadroma, Mecalac, Allmand, Manitou, Atlas, O&K, Zettelmeyer, Hanomag, Bobcat, New Holland, Fiat Hitachi, Hidromek, Terex, Alhmann, Zeppelin, Merlo, Liugong, Xcmg, and others.
Type | OKP-600/2100 | OKP-600/2400 | OKP-600/2750 |
Width of cylindrical brush | 2,10 m | 2,40 m | 2,75 m |
Diameter of cylindrical brush | 600 mm | 600 mm | 600 mm |
Capacity of the tank for impurities | 240 dm3 | 260 dm3 | 300 dm3 |
Working modes of the sweeper |
1) collection of impurities into the reservoir - reservoir lowered, 2) sweeping of impurities to the side - reservoir raised, |
||
Raising the reservoir for impurities |
Hydraulic, by means of an actuator (operated from operator's cab) | ||
Support wheels | 4 pcs, with increased load capacity, swivel, with height adjustment | ||
Brushes drive | hydraulic from the carrier system | ||
Demand for hydraulic oil | 40 ÷ 70 l /min | 50 ÷ 80 l /min | 60 ÷ 100 l / min |
Additional equipment |
water sprinkling system (with tank, sprinkler and electric water pump) right side brush left side brush |
||
Possible fixing brackets |
for loader (on existing quick coupler) for loader (on pins) for tractor for UNIMOG and similar vehicles |
||
Dimensions |
1700 x 2300 x 1200 mm |
1700 x 2600 x 1200 mm |
1700 x 2950 x 1200 mm |
Weight without fixing bracket | 440 kg | 540 kg | 680 kg |
